Sample

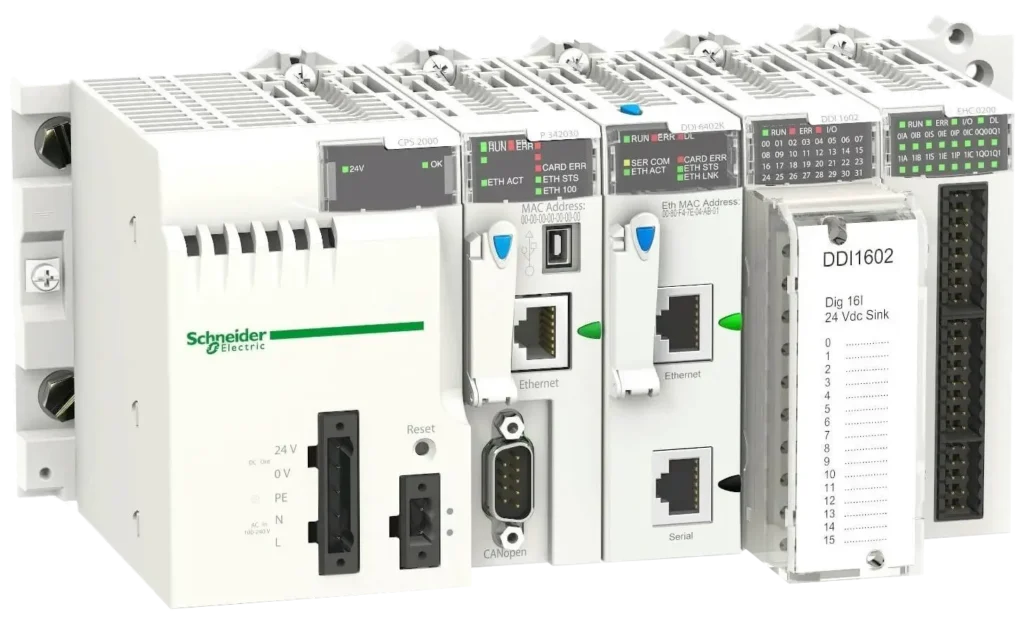

Schneider Electric Control Expert
Overview
![Sample: Schneider Electric Control Expert 2 Schneider Control Expert](https://www.agilicus.com/www/9599504a-image.png)
Schneider Electric’s Control Expert Software interoperates with the Agilicus Launcher to create a seamless remote, authenticated, secure PLC operation and configuration.
The only communication mode currently supported is TCPIP (not USB or Serial).
The below example was tested with EcoStructure Control Expert V15.0 on Windows 10.
The Control Expert software can be run inside a VM if desired.
Theory of Operation and Data Flow
![Sample: Schneider Electric Control Expert 3 Schneider Electric Control Expert Launcher Flow](https://www.agilicus.com/www/585e0e95-schneider-electric-control-expert-launcher-flow.png)
A PLC is located at a remote location. The location has no inbound access, no VPN available. It may be behind a cellular or satellite modem, it may have a restrictive firewall.
An Agilicus Connector is installed at this location such that the connector can reach the PLC on TCP port 502 (Modbus). The Connector must also be able to reach out to the Agilicus AnyX infrastructure on port 443.
On the user’s desktop, the Agilicus Launcher is installed. When the user selects the ‘Control Expert’ icon from their desktop start menu, or, when they select the icon from the Agilicus Profile, the network activity of the Control Expert software is seamlessly intercepted and tunneled to the PLC.
Authentication (and multi-factor authentication) is performed via a browser which may appear if the user is not signed in.
Unlike a VPN-style connection:
- no PLC’s (nor any other network resources) other than the granted one can be accessed
- no need to change local IP addressing in case of overlap
- multiple sites and PLC can be used simultaneously
- No reverse-path network traffic is allowed
- No inbound connectivity to the remote site is required
The PLC Modbus traffic is tunneled over HTTPS, over WebSocket, end-to-end encrypted from the User’s PC to the Agilicus Connector in the remote site.
Configuration and Setup
There are 4 basic steps:
- Create a Network Resource for the PLC
- Create a Launcher
- Set user permissions
- Install Launcher on Desktop
Create Network Resource (PLC)
We will create a ‘network resource’, this acts as the endpoint of the PLC. It has a name (example-plc in below) and the IP/port of the actual PLC (as reachable by the connector on site). Later in the Control Expert software we will refer to this IP (even though it is not locally reachable).
![Sample: Schneider Electric Control Expert 4 72afea36 image](https://www.agilicus.com/www/72afea36-image.png)
![Sample: Schneider Electric Control Expert 5 304ed108 image](https://www.agilicus.com/www/304ed108-image.png)
![Sample: Schneider Electric Control Expert 6 87d19de4 image](https://www.agilicus.com/www/87d19de4-image.png)
![Sample: Schneider Electric Control Expert 7 44f2e485 image](https://www.agilicus.com/www/44f2e485-image.png)
![Sample: Schneider Electric Control Expert 8 93ee7921 image](https://www.agilicus.com/www/93ee7921-image.png)
Create Launcher
Now we will create a Launcher resource. This models the executable on the user’s PC, taking the executable path and the network resources to encapsulate as arguments. If you have PLC’s on multiple sites with multiple connectors, associate them all here.
![Sample: Schneider Electric Control Expert 9 ea5199f5 image](https://www.agilicus.com/www/ea5199f5-image.png)
![Sample: Schneider Electric Control Expert 10 4bdbd010 image](https://www.agilicus.com/www/4bdbd010-image.png)
![Sample: Schneider Electric Control Expert 11 282c7457 image](https://www.agilicus.com/www/282c7457-image.png)
![Sample: Schneider Electric Control Expert 12 8da75cf6 image](https://www.agilicus.com/www/8da75cf6-image.png)
❗
NOTE: there is an interoperability issue with the Control Expert ‘RatSrv.exe’ and the instructions above. In some cases the Agilicus Interceptor does not see the RatSrv.exe startup. The workaround is simple:
1. Create a file ‘schneider-control.cmd” with the below contents
taskkill /im RatSrv.exestart "" "C:\Program Files (x86)\Common Files\Schneider Electric Shared\RAT\RatSrv.exe"
"C:\Program Files (x86)\Schneider Electric\Control Expert 15.0\ControlExpert.exe"
2. In step one above, instead of “C:\Program Files (x86)\Schneider Electric\Control Expert 15.0\ControlExpert.exe”, use the full patch to the ‘schneider-control.cmd’ you have created.
Assign Permissions
![Sample: Schneider Electric Control Expert 13 2af2b1a0 image](https://www.agilicus.com/www/2af2b1a0-image.png)
In the screen shots above in the ‘Create Launcher’, we assigned initial permissions. (Note: we recommend using groups to assign permissions since it simplifies configuration. For example, create a group called PLC-Admins, assign the users to it once, and then assign the PLC access permissions to the group. For more information, see “Using Groups for Assigning Role-Based Permissions“
Install Launcher
![Sample: Schneider Electric Control Expert 14 8c762b8e image](https://www.agilicus.com/www/8c762b8e-image.png)
On the PC with Control Expert installed, we will install the Agilicus Launcher. Refer to “Agilicus Launcher: Browser Desktop Integration“. This is done (on the PC with Control Expert installed) from a browser opened to https://profile.YOURDOMAIN.
Once the launcher is installed on this machine, we will see a ‘demo-plc’ icon on the start menu (and also in the profile web interface if the browser extension is installed).
At this stage, the user can open Control Expert, either via the profile web interface, or the desktop start menu. It will automatically be able to connect to the IP address of the PLC used above in the Network Resource (even though that IP is not reachable from this machine).
