Send Email Inside Air Gap
Use public email provider from within an air-gap environment using Agilicus Service Forwarder
Send Email Inside Air Gap
The situation: we have a machine in an industrial air gap environment that needs to send email. Perhaps its VTscada, perhaps something else. We would prefer to use Google (smtp.google.com) or Microsoft (outlook).
The site doesn’t have outbound Internet connectivity, and this is undesired. The Agilicus connector has a single outbound HTTPS (port 443) connection, and we will multiplex the SMTP over this.

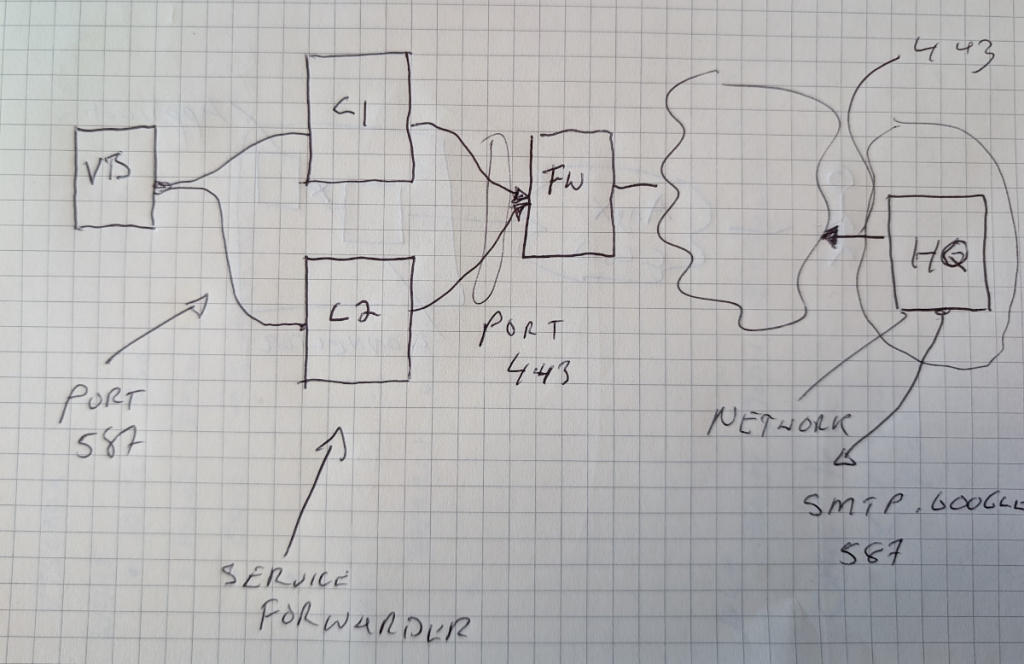

In the below diagram, we have a system that is needing to send email (VTS), we have two Agilicus Connectors (C1, C2) as a high-availability set. We have a site firewall (FW). We have our company headquarters with an Agilicus Connector (HQ).
The Agilicus connectors each have HTTPS outbound connectivity (port 443) to a fixed IP (Agilicus AnyX).

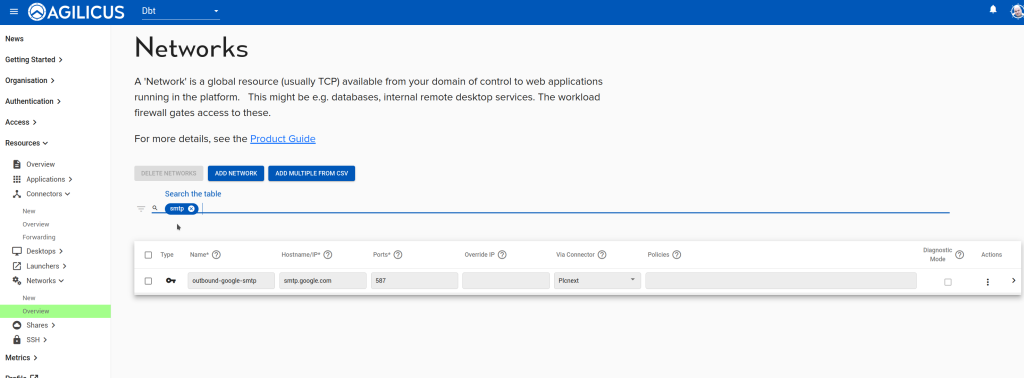

To configure this, we will first create a Network. This is logically running in the *HQ* site, and must have onwards connectivity (and DNS lookup). In the example given, we have used smtp.google.com, port 587.
NOTE: Google Email Authentication
❗
To prevent spam, Google has strict authentication requirements for connecting to their SMTP service. You can see more information in “Send email from a printer, scanner, or app“
The parameters for the network are:
| name | arbitrary (this is a label for you) |
| Hostname/IP | smtp.google.com (or IP) |
| Port | 587 |
| Via Connector | HQ (or your connector name running outside firewall) |

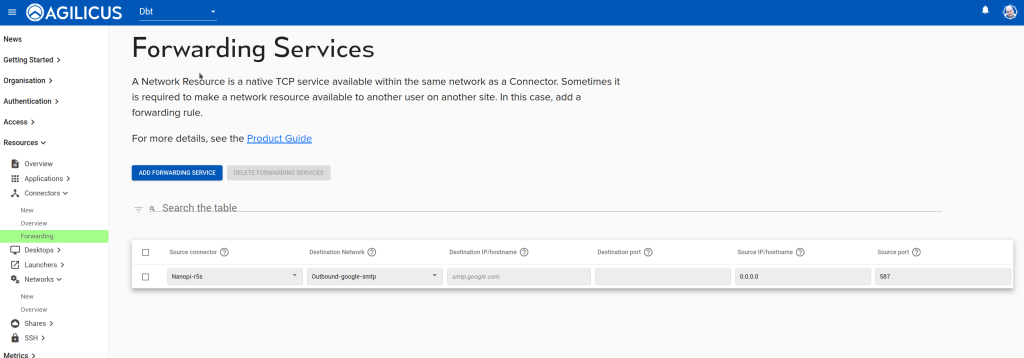

Next we create the Service Forwarder. Conceptually this runs on the connector within the Air Gap site. It will listen on a port, and, forward that to the Network we defined above.
| Source Connector | C1 (or on-premise connector) |
| Destination Network | (Name chosen above in Networks) |
| Source IP/Hostname | 0.0.0.0 (causes to listen on external interface) |
| Source Port | 587 |
At this time the connectors (C1 and C2 above) will start listening on port 587. You can now configure your SMTP client to use the IP of C1 or C2, port 587, configure the SMTP authentication criteria.

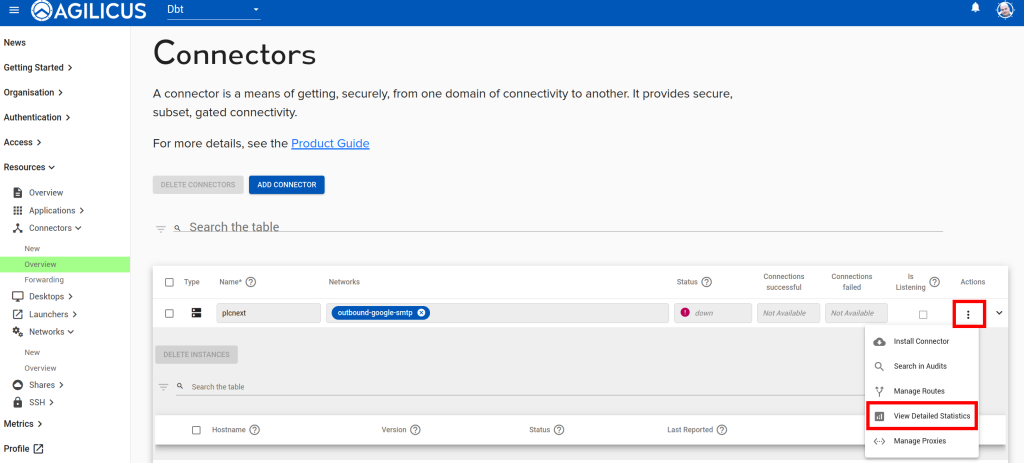

To diagnose use the Connectors/Overview, select the action-button (3-dots) and then ‘view detailed statistics’. Wait a few seconds, attempt to send some email, wait a few seconds, and observe the counters.
